- Наличие: Под заказ 3-4 недели
Комплект разработчика, разъем отладки для интерфейса адаптера отладки.
C8051F320DK MCU development kit is designed for C8051F320 microcontroller. Silicon Lab?s' USB MCUs, with embedded full speed USB 2.0, make it easy to implement industry standard USB connectivity. USBXpress development software is available to provide a complete host and device side software solution. The USB MCUs feature an on board universal serial bus (USB) 2.0 function controller with an integrated transceiver and on chip clock recovery. No external resistors, crystal, voltage regulator, EEPROM or other components are required. On chip resources include a high speed 8051 CPU with up to 16KB Flash, UARTs, SMBus, SPI, timers, counters and PWM generators. On chip analog features include a multi channel 10bit ADC, voltage reference, internal oscillator, comparators and a temperature sensor.
Характеристики | |
SVHC (Особо Опасные Вещества) | To Be Advised |
Количество Бит | 8бит |
Линия Продукции | - |
Название Семейства Чипа | C8051F32x |
Номер Ядра Чипа | C8051F320 |
Особенности | DEBUG Connector for Debug Adapter Interface, Analog I/O Terminal Block |
Особенности Комплекта | Used for the Development of C8051F32x Microcontroller Unit |
Подархитектура Ядра | 8051 |
Производитель Чипа | Silicon Laboratories |

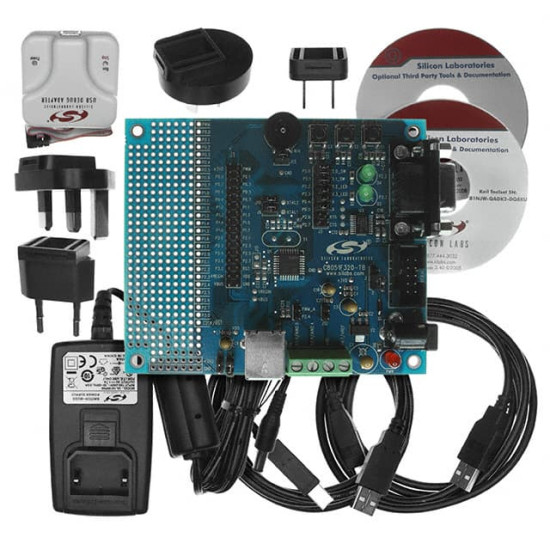

Содержимое Комплекта | Target Board, AC to DC Power Adapter, USB Debug Adapter, CD-ROM, USB Cable, Quick-Start Guide |
