HW-FMC-XM104-G

FMC XM104, CONNECTIVITY CARD.

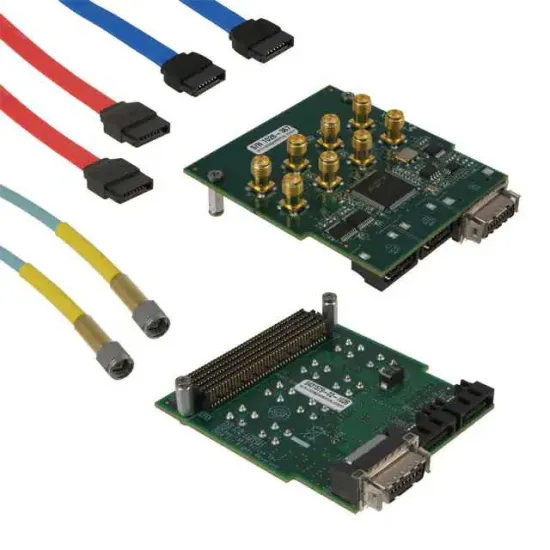

The HW-FMC-XM104-G is a connectivity card designed to provide access to eight serial transceivers on the FMC HPC connector found on Xilinx FMC supported boards including Virtex-6 ML605. These eight serial transceivers can be accessed through one CX4 (x4 transceivers), two SATA (x2 transceivers), and eight SMA (x2 transceivers) connectors. The XM104 provides a number of connectors which break out the FPGA multi gigabit transceiver (MGT) interface signals to and from the board interface. Silicon Laboratories Si570 serial IIC bus reprogrammable LVDS clock source and a Si5368 any rate precision clock multiplier and jitter attenuator integrated circuits provide a variety of programmable differential clock sources to the board's FGPA.
