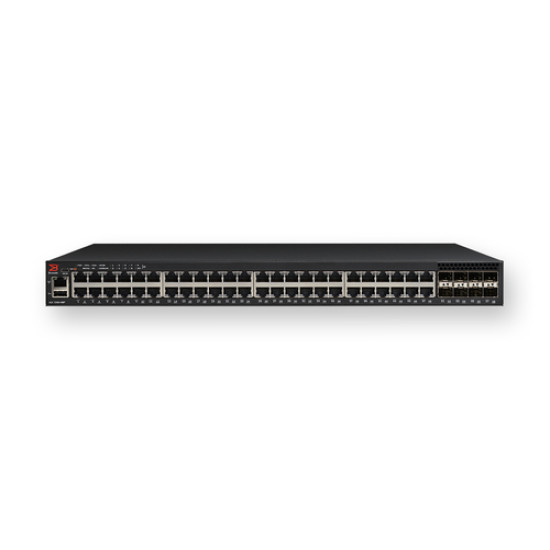

Коммутатор Ruckus ICX7250-48P-2X10G
- Наличие: Под заказ 3-4 недели
- Артикул: ICX7250-48P-2X10G
404 825 ₽
Brocade ICX 7250 Switch, 48×10/100/1000 PoE+ ports, 6×1 GbE SFP and 2×10 GbE SFP+ uplink/stackingports
upgradable to up to 8×10 GbE SFP+ with license, 740 W PoE budget, basic Layer 3 (static routing and RIP),
Connector options
10/100/1000 ports: RJ-45
1/10 Gbps SFP+ ports
Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45
Console management: Mini-USB serial port (Mini-B plug)
File transfer: USB port (Standard-A plug)
DRAM NVRAM (flash) Packet Buffer Size
2 GB (except for ICX 7250-24G: 1 GB) 2 GB (except for ICX 7250-24G: 1 GB) 24 port: 2 MB, 48 port: 4 MB
Maximum MAC addresses 16,384
Maximum VLANs Maximum PVLANs 4,096 32
Maximum STP (spanning trees) 254
Maximum VEs 255
Maximum routes (in hardware
12,000 (IPv4)
2,048 (IPv6)
upgradable to up to 8×10 GbE SFP+ with license, 740 W PoE budget, basic Layer 3 (static routing and RIP),
Connector options
10/100/1000 ports: RJ-45
1/10 Gbps SFP+ ports
Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45
Console management: Mini-USB serial port (Mini-B plug)
File transfer: USB port (Standard-A plug)
DRAM NVRAM (flash) Packet Buffer Size
2 GB (except for ICX 7250-24G: 1 GB) 2 GB (except for ICX 7250-24G: 1 GB) 24 port: 2 MB, 48 port: 4 MB
Maximum MAC addresses 16,384
Maximum VLANs Maximum PVLANs 4,096 32
Maximum STP (spanning trees) 254
Maximum VEs 255
Maximum routes (in hardware
12,000 (IPv4)
2,048 (IPv6)
| Характеристики | |
| Количество портов для основного подключения | 48 |
| Поддержка PoE | Да |
| Тип Uplink портов | SFP+ |
| Тип коммутатора | Управляемый L3 |
| Тип портов для основного подключения | 10/100/1000Base-T |
| Тип устройства | Коммутатор |
