Мультиплексоры / Демультиплексоры

IC, LOGIC, 74LS, MULTIPLEXER.The SN74LS151N is a 8 to 1-line Data Selector or Multiplexer with full on-chip binary decoding to select the desired data source. The LS151 select one-of-eight data sources. A high level at the strobe forces the W-output high and the Y-output (as applicable) low. The LS1..

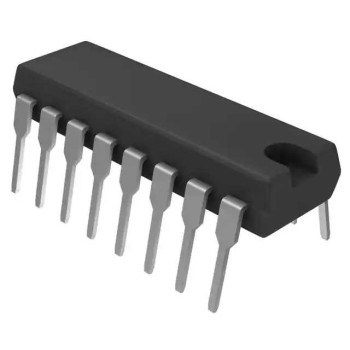

IC, MUX.The SN74LS153N is a monolithic dual 4-line to 1-line Data Selector/Multiplexer contains inverters and drivers to supply fully complementary, on-chip and binary decoding data selection to the AND-OR gates. Separator strobe inputs are provided for each of the two 4-time sections...

IC, DECODER/DEMUX.The SN74LS156N is a 2-to-4 Dual Decoder/Demultiplexer with open-collector outputs. When both sections are enabled by the strobes, the common binary-address inputs sequentially select and route associated input data to the appropriate output of each section. The individual strobes p..

LOGIC, QUAD 2-1 DATA SEL/MUX, 16DIP...

LOGIC, DATA SELECT/MUX 8-1, 16SOIC...

LOGIC, 8-IN DATASELCT/MUX 3ST, 16DIP.The SN74LS251N is a 8-to-1 Data Selector/Multiplexer with 3-state outputs. It contains full on-chip binary decoding to select one-of-eight data sources and feature a strobe-controlled three-state output. The strobe must be at a low logic level to enable these dev..

8I/P SIGNAL DATA SELECTOR/MUX, DIP-16...

LOGIC, 4-1 DATA SELECT/MUX, 16DIP...

IC, LOGIC, 74LS, MULTIPLEXER.The SN74LS257BN is a 2-to-1 quadruple Data Selector/Multiplexer with 3-state outputs. It is designed to multiplex signals from four-bit data sources to four-output data lines in bus-organized systems. The 3-state outputs will not load the data lines when the output contr..

LOGIC, DATA SELCT/MUX 2-1 QUAD, 16SOIC...
