Триггеры-защелки

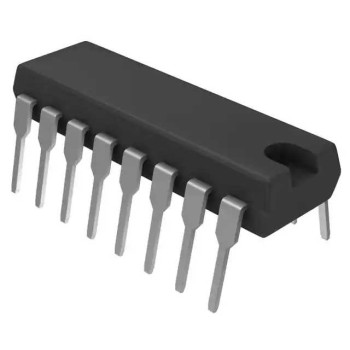

LOGIC, ADDRESSBLE LATCH 8BIT, 16DIP.The CD4724BE is a 8-bit Addressable Latch with serial-input parallel-output storage register that can perform a variety of functions. Data are inputted to a particular bit in the latch when that bit is addressed (by means of input A0, A1, A2) and when WD is at a l..

IC, 74AC CMOS, 74AC573, DIP20, 5.5V.The CD74AC573E is an octal transparent Non-inverting Latch with 3-state outputs. It uses the RCA ADVANCED CMOS technology. The outputs are transparent to the inputs when the LE\ is high. When the LE\ goes low, the data is latched. The OE\ controls the 3-state outp..

IC, 74AC CMOS, SMD, 74AC573, SOIC20.The CD74AC573M is an octal transparent Non-inverting Latch with 3-state outputs. It uses the RCA ADVANCED CMOS technology. The outputs are transparent to the inputs when the LE\ is high. When the LE\ goes low, the data is latched. The OE\ controls the 3-state outp..

74ACT CMOS, SMD, 74ACT573, SOIC20.The CD74ACT573M is an octal non-inverting Transparent Latch with 3-state outputs. It uses the RCA ADVANCED CMOS technology. The outputs are transparent to the inputs when the LE\ is high. When the LE\ goes low, the data is latched. The OE\ controls the 3-state outpu..

IC, LOGIC, ADDRESSABLE LATCH, 16DIP...

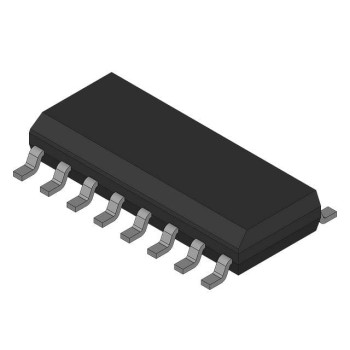

LOGIC, ADDRESSABLE LATCH, 16SOIC...

IC, 74HC CMOS, SMD, 74HC373, SOIC20.The CD74HC373M is an octal CMOS Transparent Latch with 3-state outputs. This high speed latch is designed for 2 to 6V VCC operation. When the LE input is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs are latched at the logic levels ..

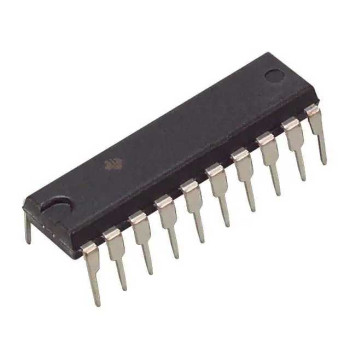

D-LATCH, TRANSPARENT, OCTAL, DIP-20.The CD74HC573E is an octal CMOS Transparent D Latch with 3-state outputs. This high speed latch is designed for 2 to 6V VCC operation. When the LE input is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs are latched at the logic level..
