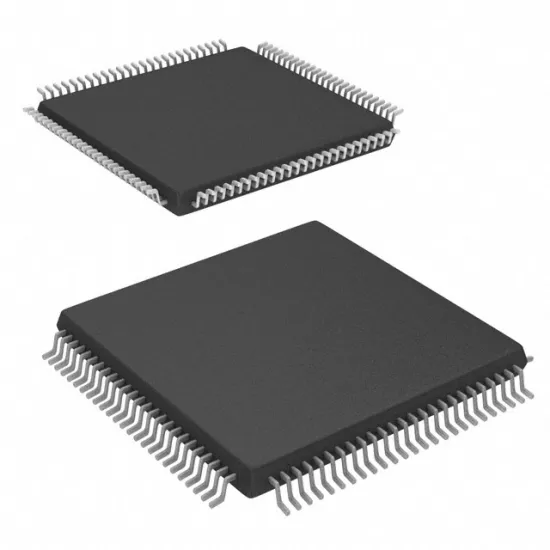

XC2C128-7VQG100C

CPLD, COOLRUNNER-II, 128MCELL, 100VQFP.

The XC2C128-7VQG100C is a CoolRunner-II 128-macrocell Device designed for both high performance and low power applications. This lends power savings to high-end communication equipment and high speed to battery operated devices. Due to the low power stand-by and dynamic operation, overall system reliability is improved. This device consists of eight function blocks inter-connected by a low power advanced interconnect matrix (AIM). The AIM feeds 40 true and complement inputs to each function block. The function blocks consist of a 40 by 56 P-term PLA and 16 macro-cells which contain numerous configuration bits that allow for combinational or registered modes of operation.
