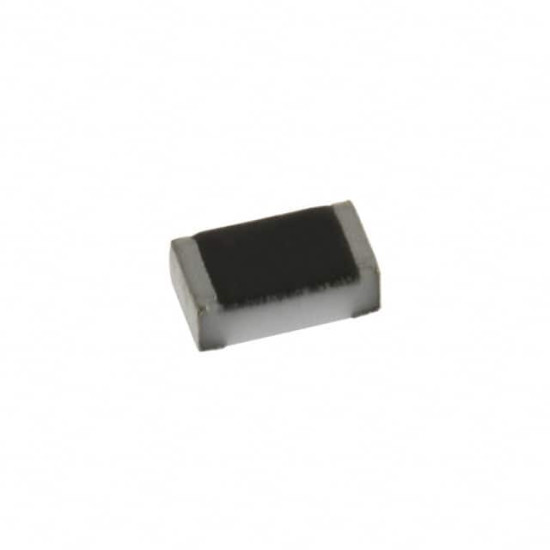

SMD чип резистор, толстопленочный, 0402 [1005 Метрический], 49.9 Ом, CRCW Series, 50 В.
The Vishay D/CRCW e3 series are standard thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm. CRCW e3 series resistors have a pure tin solder contacts on the Ni barrier layer that provides compatibility with reflow soldering process.
- Automotive grade AEC-Q200 qualified
- EIA 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512 standard case sizes available
- Stability ΔR/R = 1% for 1000h at 70°C
- Metal glaze on high quality ceramic
- Zero ohm jumper are available for all sizes
- 2mm pitch packaging option for 0603 size
- Available in ±1% and ±5% tolerance
- ±100ppm/K and ±200ppm/K TCR values available
- Operating temperature range -55°C to +155°C
- Maximum power rating is 1W
| Характеристики | |
| SVHC (Особо Опасные Вещества) | Lead (15-Jan-2019) |
| Вес | 2.27г |
| Допуск Сопротивления | ± 1% |
| Класс Мощности | 63мВт |
| Линейка Продукции | CRCW Series |
| Номинальное Напряжение | 50В |
| Сопротивление | 49.9Ом |
| Стандарты Автомобильной Промышленности | AEC-Q200 |
| Стиль Корпуса Резистора | 0402 [1005 Метрический] |
| Температурный Коэффициент | ± 100млн??/K |
| Тип Элемента Сопротивления | Толстая Пленка |
