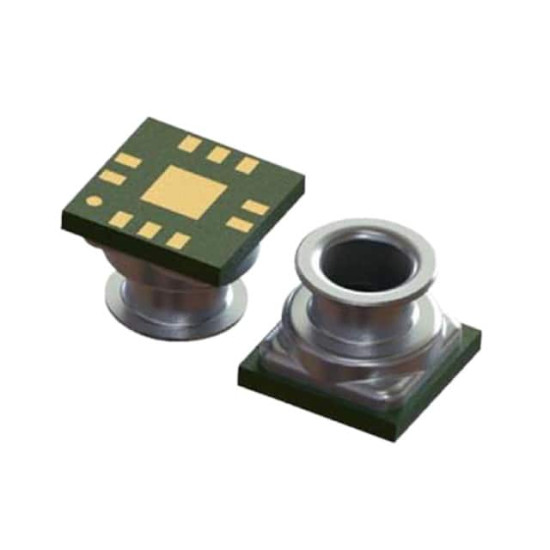

LPS33HWTR

Датчик Давления, Абсолютный, 26 кПа, 126 кПа, 1.7 В, 3.6 В.

The LPS33HW is an ultra-compact piezoresistive pressure sensor which functions as a digital output barometer. The device comprises a sensing element and an IC interface which communicates through I2C or SPI from the sensing element to the application. The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST.

• Pressure sensor with water-resistant package
• 260 to 1260hPa absolute pressure range
• Current consumption down to 3µA
• High overpressure capability: 20x full scale
• Embedded temperature compensation
• 24bit pressure data output
• 16bit temperature data output
• ODR from 1Hz to 75Hz
• SPI and I2C interfaces
• Embedded FIFO
• Interrupt functions: data-ready, FIFO flags, ressure thresholds
