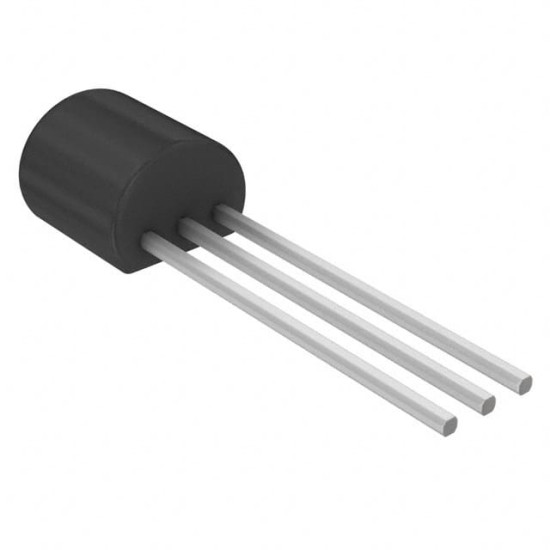

LMT86LP

Датчик температуры (ИС), Аналоговый, ± 0.25°C, -50 °C, 150 °C, TO-92, 3 вывод(-ов).

The LMT86LP is a precision CMOS Integrated Circuit Temperature Sensor with an analogue output voltage that is linearly and inversely proportional to temperature. Its features make it suitable for many general temperature sensing applications. It can operate down to 2.2V supply with 5.4µA power consumption making it ideal for battery powered devices. A class-AB output structure gives the LMT86/LMT86-Q1 strong output source and sink current capability that can directly drive up to 1.1nF capacitive loads. This means it is well suited to drive an analogue-to-digital converter sample-and-hold input with its transient load requirements.
