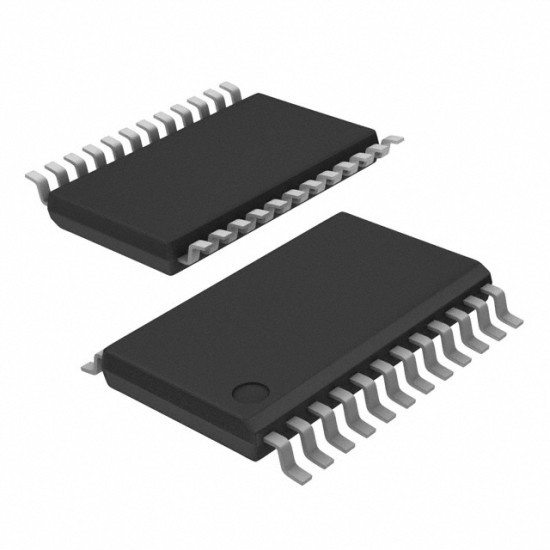

PCF8575CPW

Расширитель I/O, 16бит, 400 кГц, I2C, Параллельный, SMBus, 4.5 В, 5.5 В, TSSOP.

The PCF8575CPW is a 16-bit I/O Expander for the two-line bidirectional bus (I?C) is designed for 4.5 to 5.5V VCC operation. The PCF8575C provides general-purpose remote I/O expansion for most microcontroller families via the I?C interface serial clock (SCL) and serial data (SDA). The device features a 16-bit quasi-bidirectional input/output (I/O) port (P07-P00, P17-P10), including latched outputs with high-current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data-direction control signal. At power on, the I/Os are in 3-state mode. The strong pull-up to VCC allows fast-rising edges into heavily loaded outputs. This device turns on when an output is written high and is switched off by the negative edge of SCL. The I/Os should be high before being used as inputs. After power on, as all the I/Os are set to 3-state, all of them can be used as inputs.
