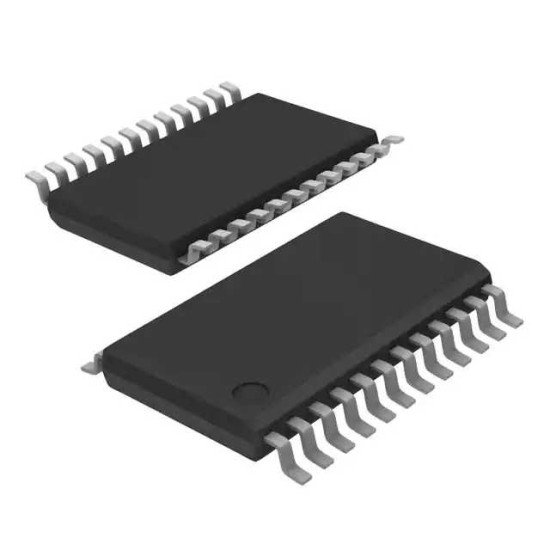

TCA9539PWR

Расширитель I/O, 16бит, 400 кГц, I2C, SMBus, 1.65 В, 5.5 В, TSSOP.

The TCA9539PWR is a 16-bit remote I?C and SMBus low-power I/O Expander with interrupt output, reset and configurable registers 24-pin device. It provides 16-bits of general purpose parallel input/output (I/O) expansion for the two-line bidirectional I?C bus (or SMBus protocol). The device can operate with a power supply voltage (VCC) range from 1.65 to 5.5V. The device supports 100kHz (I?C standard mode) and 400kHz (I?C fast mode) clock frequencies. I/O expanders such as the TCA9539 provide a simple solution when additional I/Os are needed for switches, sensors, push-buttons, LEDs, fans and other similar devices. The features of the expander include an interrupt that is generated on the INT pin whenever an input port changes state. The A0 and A1 hardware selectable address pins allow up to four TCA9539 devices on the same I?C bus. The device can be reset to its default state by cycling the power supply and causing a power-on-reset.
