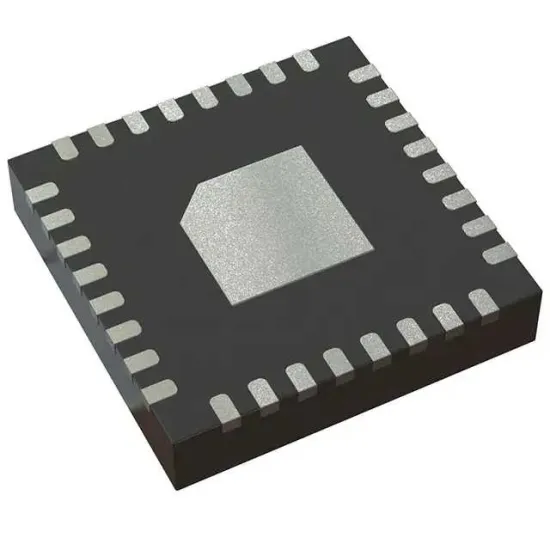

TLC59116IRHBR

Драйвер светодиода, 16 выходов, линейный, 3В-5.5В (Vin), 1МГц, 17В/120мА, VQFN-32.

The TLC59116IRHBR is a 16-bit fast-mode plus (FM+) I?C-bus constant-current LED Sink Driver optimized for red/green/blue/amber (RGBA) colour mixing and backlight application. Each LED output has its own 8-bit resolution (256 steps) fixed-frequency individual PWM controller that operates at 97kHz, with a duty cycle that is adjustable from 0 to 99.6%. The individual PWM controller allows each LED to be set to a specific brightness value. An additional 8-bit resolution (256 steps) group PWM controller has both a fixed frequency of 190Hz and an adjustable frequency between 24Hz to once every 10.73 seconds, with a duty cycle that is adjustable from 0 to 99.6%. The group PWM controller dims or blinks all LEDs with the same value. Each LED output can be off, on (no PWM control) or set at its individual PWM controller value at both individual and group PWM controller values. The TLC59116 operates with a supply voltage range of 3 to 5.5V and the outputs are 17V tolerant.
