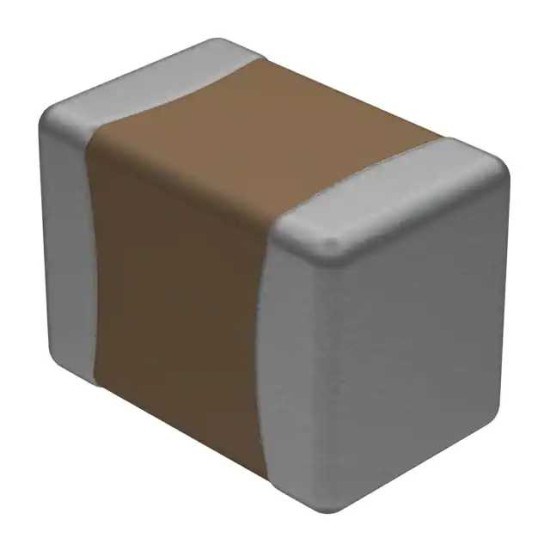

Многослойный керамический конденсатор, 0.1 мкФ, 50 В, 0805 [2012 Метрический], ± 10%, X7R.
The Vishay VJ series are surface mount multilayer ceramic chip capacitors for high frequency and commodity applications. These capacitors X7R dielectric material is made of dry sheet technology process. It used in consumer electronics, telecommunications, data processing and mobile applications.
- EIA 0402, 0603, 0805, 1206, 1210 case sizes are available
- Capacitance range from 100pF to 47µF
- Rated voltage range from 10VDC to 100VDC
- Operating temperature range from -55°C to +125°C
- Insulation resistance (IR) at UR is >= 10Gohm or R x C >= 500 ohm x F whichever is less
- Ni-barrier with 100% tin terminations
- Base Metal Electrode system (BME)
- Temperature coefficient of capacitance is ±15% from -55°C to +125°C without voltage applied
- Suitable for high frequency applications
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jan-2019) |
| Вес | 1г |
| Допуск Емкости | ± 10% |
| Емкость | 0.1мкФ |
| Корпус Керамического Конденсатора | 0805 [2012 Метрический] |
| Линейка Продукции | VJ Commercial Series |
| Максимальная Рабочая Температура | 125°C |
| Минимальная Рабочая Температура | -55°C |
| Номинальное Напряжение | 50В |
| Уровень Чувствительности к Влажности (MSL) | MSL 1 - Безлимитный |
| Характеристика Диэлектрика | X7R |
