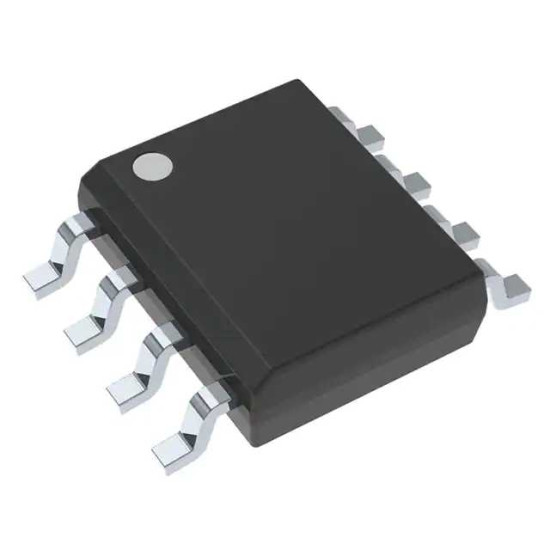

TLC3702CD

Аналоговый компаратор, двойной, Micropower, 2, 2.7 мкс, 3В до 16В, SOIC, 8 вывод(-ов).

The TLC3702CD is a dual micro-Power LinCMOS™ Voltage Comparator with push-pull outputs. It is designed to operate from a single supply and be compatible with modern HCMOS logic systems. The functionally similar to the LM339 but use 1/20th of the power for similar response times. The push-pull CMOS output stage drives capacitive loads directly without a power-consuming pull-up resistor to achieve the stated response time. Eliminating the pull-up resistor not only reduces power dissipation, but also saves board space. The output stage is also fully compatible with TTL requirements. Texas Instruments LinCMOS™ process offers superior analogue performance to standard CMOS processes. Along with the standard CMOS advantages of low power without sacrificing speed, high input impedance and low bias currents, the LinCMOS™ process offers extremely stable input offset voltages with large differential input voltages. This characteristic makes it possible to build reliable CMOS com
