- Наличие: Под заказ 3-4 недели
Оценочный модуль, USB Type-C™, защита от перенапряжения, IEC ЭСР.

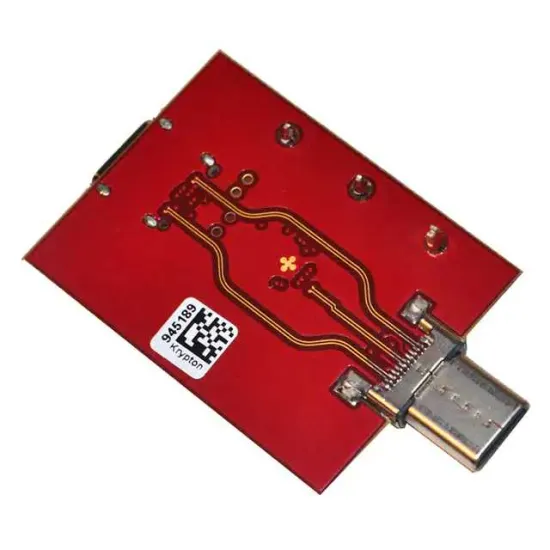

The TPD8S300EVM from Texas Instruments is a USB type C overvoltage and IEC ESD protection evaluation module. The TI TPD8S300 evaluation module (EVM) helps designers evaluate the operation and performance of the TPD8S300 device. The TPD8S300 is a single-chip solution for protection of the USB type-C configuration channel (CC), sideband use channel (SBU) and D+/D- data lines. The device provides short to VBUS overvoltage protection up to 22 V for CC1, CC2, SBU1 and SBU2 pins to prevent damage caused by a faulty connecter or mechanical twist shorting pins. The TPD8S300 also provides eight channels of IEC 61000-4-2 ESD protection for CC1, CC2, SBU1, SBU2, D+/D- (top side) and D+/D- (bottom side) pins of the USB type-C connector.
- IEC 61000-4-2 compliance testing
- USB type-C pass-through functionality
- CC and SBU line overvoltage protection evaluation
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (27-Jun-2018) |
| Вес | 100г |
| Номер Ядра Чипа | TPD8S300 |
| Подтип Приложения | Защита USB |
| Производитель Чипа | Texas Instruments |
| Содержимое Комплекта | Оценочная плата TPD8S300 |
| Тип Приложения Набора | Интерфейс |
