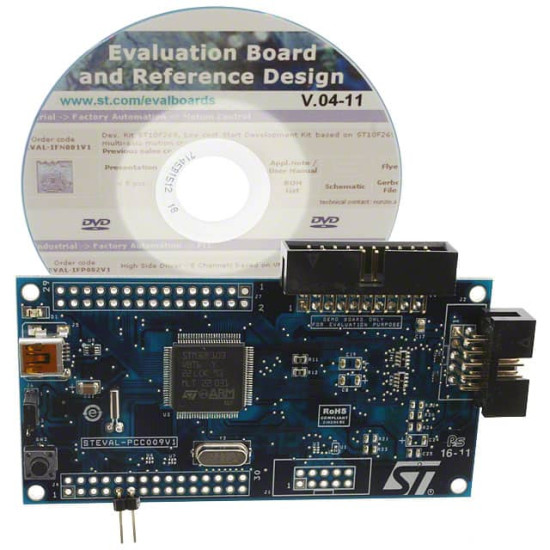

STEVAL-PCC009V1

Демонстрационная плата, STM32, USB-последовательная связь, исходный код (включая DFU).

The STEVAL-PCC009V1 is a demo board which implements an universal USB to serial communication interface (UUSCI) based on STM32 microcontroller. This demo board has a 10 pin interface. In this interface, there is a provision to connect a device which can communicate using I2C, SPI and UART. Thus UUSCI tool allows a user to connect a serial communication based device to a PC. At the same time it allows to control some GPIOs available in that 10 pin interface and set them in input/output modes as per the application requirements. In UUSCI demonstration board, the STM32 microcontroller is used as the interface between PC and the end device. Due to intelligence available in the STM32 device, I2C, SPI and UART are multiplexed in same 10 pin interface thus leading to reduced board size and the complexity of usage. Power to board is provided from USB Mini B-Type connector. a user can use available DLL files to make their own customized PC GUI as per their requirements.
