EVAL, STM32303C, CORTEX M4.

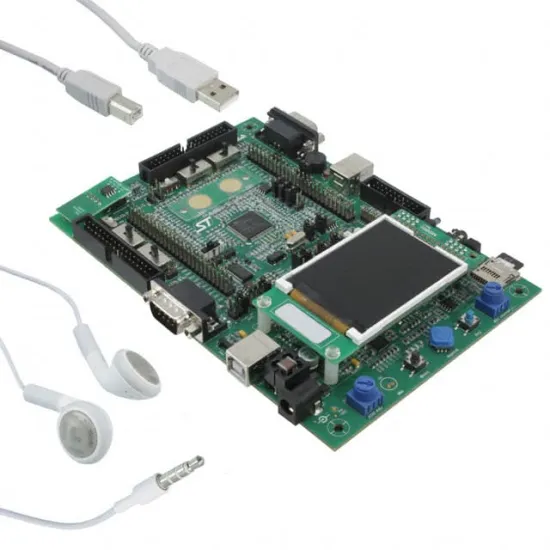

The STM32303C-EVAL is an evaluation board which has been designed as a complete demonstration and development platform for the ARM cortex-M4 core based STM32F303VCT6 microcontroller. This evaluation board can be used as the reference design for user application development but it is not considered as a final application. The full range of hardware features on the board is able to help to evaluate all peripherals (USB FS, USART, Audio DAC and ADC, TFT colour LCD, IrDA, LDR, microSD card, motor control connectors, humidity sensor, high brightness LED, CAN, IR receiver, EEPROM, touch sensing buttons and temperature sensor, etc) and develop our own applications. Extension headers make it possible to easily connect a daughter board or wrapping board for specific application. An ST-LINK/V2 is integrated on the board as an embedded in circuit debugger and programmer for the STM32 MCU.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F303xx |
| Номер Ядра Чипа | STM32F303VCT6 |
| Особенности | Two I2Cs, Three SPIs, Five USARTs, One CAN, Four 12bit ADCs, Two 12bit DACs, 40KByte Data SRAM |
| Подархитектура Ядра | Cortex-M4 |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Eval Board STM32F303VCT6 |
