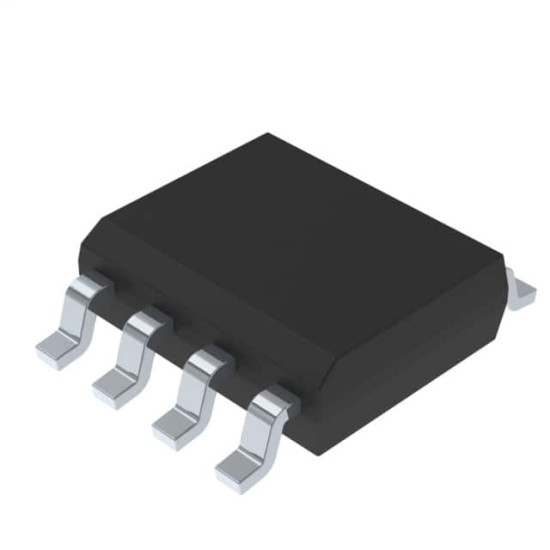

LM335D

Датчик температуры (ИС), Напряжение, 0°C до +1°C, -40 °C, +100 °C, SOIC, 8 вывод(-ов).

The LM335D is a Precision Temperature Sensor which can be easily calibrated. They operate as a 2-terminal Zener and the breakdown voltage is directly proportional to the absolute temperature at 10mV/°K. The circuit has a dynamic impedance of less than 1R and operates within a range of current from 450µA to 5mA without alteration of its characteristics. Calibrated at +25°C, the device has a typical error of less than 1°C over a 100°C temperature range. The LM335 has a linear output.
