LM73CIMK-0/NOPB

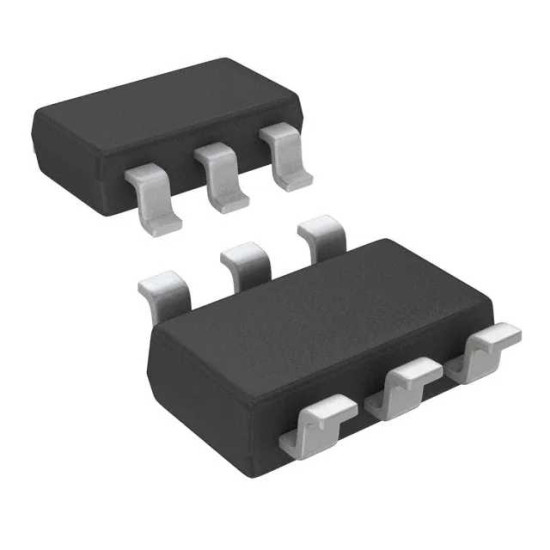

Датчик температуры (ИС), Напряжение, ± 1°C, -40 °C, 150 °C, SOT-23, 6 вывод(-ов).

The LM73CIMK-0/NOPB is an integrated Digital-Output Temperature Sensor featuring an incremental Delta-Sigma ADC with a two-wire interface that is compatible with the SMBus and I 2C interfaces. The host can query the device at any time to read temperature. The user can optimize between the conversion time and the sensitivity of the LM73 by programming it to report temperature in any of four different resolutions. Defaulting to 11-bit mode (0.25°C/LSB), the LM73 measures temperature in a maximum time of 14ms, making it ideal for applications that require temperature data very soon after power-up. In its maximum resolution, 14-bit mode (0.03125°C/LSB), the LM73 is optimized to sense very small changes in temperature. A single multi-level address line selects one of three unique device addresses.
