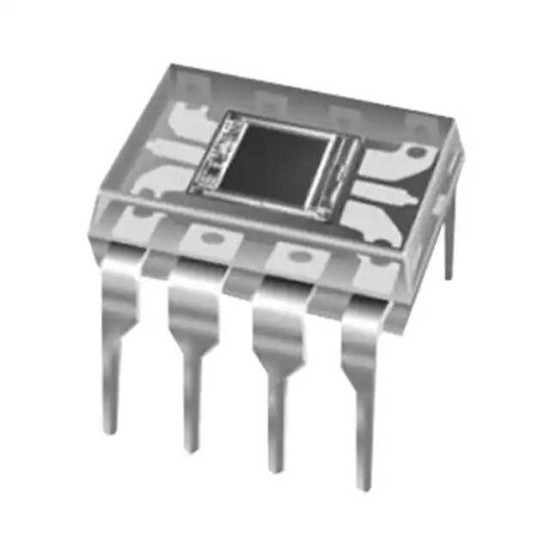

OPT101P
- Наличие: Под заказ 3-4 недели
1 439 ₽
PHOTODIODE, 650NM, DIP-8.
The OPT101P is a 8-pin Monolithic Photodiode with on-chip trans-impedance amplifier. The integrated combination of photodiode and trans-impedance amplifier on a single chip eliminates the problems commonly encountered in discrete designs, such as leakage current errors, noise pick-up and gain peaking as a result of stray capacitance. Output voltage increases linearly with light intensity. The amplifier is designed for single or dual power supply operation. The 0.09 x 0.09" (2.29 x 2.29mm) photodiode operates in the photoconductive mode for excellent linearity and low dark current. The OPT101P operates from 2.7 to 36V supplies and 120µA quiescent current.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jun-2015) |
| Длина Волны Предельной Чувствительности | 650нм |
| Количество Выводов | 8вывод(-ов) |
| Максимальная Рабочая Температура | 85°C |
| Минимальная Рабочая Температура | -25°C |
| Спектральный Диапазон при Пиковом Значении | - |
| Стиль Корпуса Диода | DIP |
| Упаковка | Поштучно |
