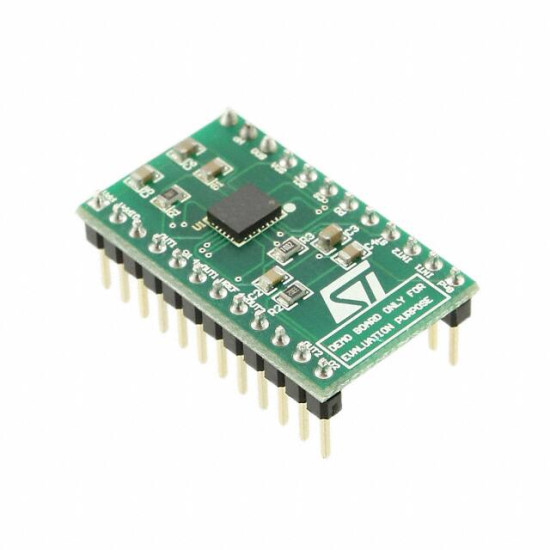

STEVAL-MKI086V1

Плата адаптера LPY403AL для стандартного гнезда DIL 26.

The STEVAL-MKI086V1 is an adapter board designed to facilitate the evaluation of LPY403AL dual axis pitch and yaw ± 30dps analog gyroscope. The LPY403AL is a low power dual axis micromachined gyroscope capable of measuring angular rate along pitch and yaw axis. The board offers an effective solution for fast system prototyping and device evaluation directly within the user's own application. The STEVAL-MKI086V1 board can be plugged into a standard DIL 24 socket. The adapter provides the complete LPY403AL pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVALMKI109V2 motherboard which includes a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
