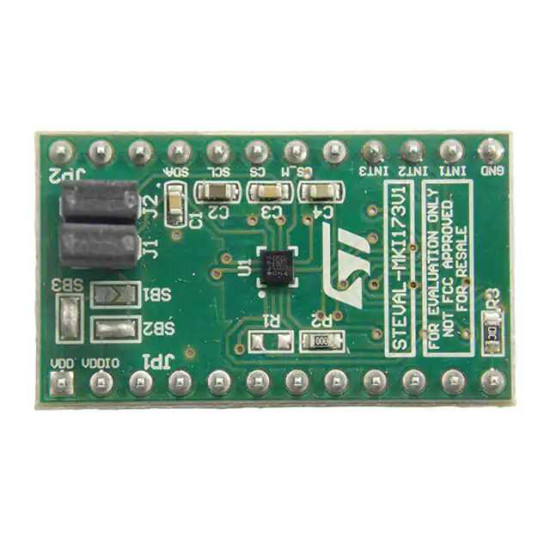

STEVAL-MKI173V1

Плата адаптера, для материнских плат датчиков движения, DIL24, STEVAL-MKI109V3.

The STEVAL-MKI173V1 from STMicroelectronics is a LSM303AH adapter board for standard DIL24 socket. The STEVAL-MKI173V1 adapter board is designed to facilitate the evaluation of MEMS devices in the LSM303AH product family. The board offers an effective solution for fast system prototyping and device evaluation from directly within the user application. The STEVAL-MKI173V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM303AH pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL-MKI109V3 motherboard with a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI) or dedicated software routines for customized applications.

• Complete LSM303AH pin-out for a standard DIL24 socket
• Fully compatible with the STEVAL-MKI109V3 motherboard
