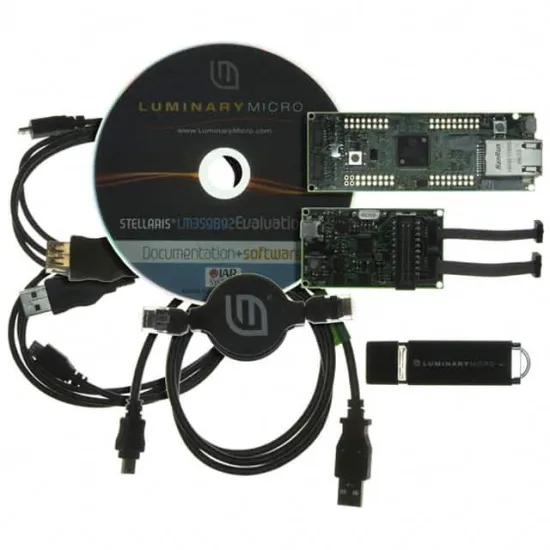

EKI-LM3S9B92

LM3S9B92, BD-ICDI, W / IAR, EVAL KIT.

The EKI-LM3S9B92 is a Stellaris LM3S9B92 Ethernet plus USB-OTG evaluation kit provides a low cost IAR systems embedded workbench(32KB code size limited) evaluation platform for the LM3S9B92 ARM Cortex-M3 based microcontroller. The evaluation board design highlights the LM3S9B92 microcontroller's 10/100Mbit Ethernet port, full speed USB-OTG port, In Circuit Debug interface (ICDI) board and easy connection to the GPIO ports. The LM3S9B92 microcontroller features advanced motion control including eight PWM outputs for motion and energy and two quadrature encoder inputs (QEI) modules. The LM3S9B92 microcontroller also features an external 16MHz crystal that provides the main oscillator clock which can directly drive the ARM core clock or an internal PLL to increase the core clock up to 80MHz. A 25MHz crystal is used for the Ethernet clock, an internal LDO voltage regulator.
