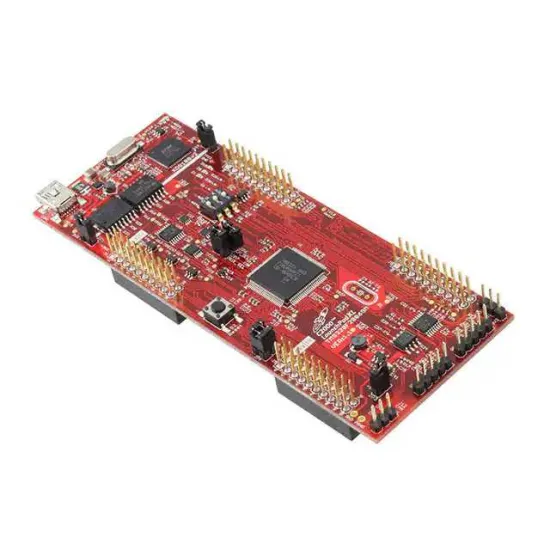

LAUNCHXL-F28069M
- Наличие: Под заказ 3-4 недели
10 656 ₽
Оценочная платформа, микроконтроллер Piccolo F28069 с InstaSPIN-MOTION и InstaSPIN-FOC.
The InstaSPIN-MOTION (and InstaSPIN-FOC) enabled C2000 Piccolo LaunchPad is an inexpensive evaluation platform designed to help you leap right into the world of motor control using the InstaSPIN-MOTION or InstaSPIN-FOC solution. The LaunchPad is based on the Piccolo TMS320F28069M with unique features such as 256KB of on board flash, 12bit ADC, I2C, SPI, UART, CAN, dual Encoder support and InstaSPIN libraries in on-chip execute only ROM memory. The LaunchPad includes many board hardware features such as an integrated isolated XDS100v2 JTAG emulator for easy programming and debugging, Works with various BoosterPacks, but specifically for BOOSTXL-DRV8301.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jun-2015) |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | Piccolo - TMS320F280xx |
| Номер Ядра Чипа | TMS320F28069M |
| Особенности | Piccolo MCU w/ InstaSPIN-MOTION & InstaSPIN-FOC, Built in JTAG Emulator, USB Debugging/Programming |
| Подархитектура Ядра | C2000 |
| Производитель Чипа | Texas Instruments |
| Содержимое Комплекта | C2000 LaunchPad Board TMS320F28069M, 0.5m Mini USB-B Cable, Quick Start Guide |
