MSP-EXP430FG4618

Макетная плата, для MSP430FG4618, совместимость с беспроводными оценочными модулями.

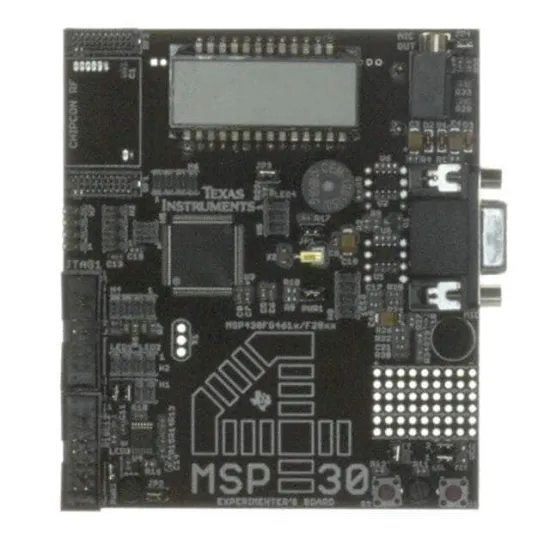

The MSP-EXP430FG4618 is a MSP430 experiment board. The MSP430F2013 and MSP430FG4618 is compatible with TI's wireless evaluation modules. Two JTAG headers are accessible to program and debug each MSP430 individually and allows for communication to external devices or between the two MSP430s. Power may be supplied over the USB FET or from the included AAA batteries. The combination of the tiny MSP430F2013 and the highly integrated MSP430FG4618 provides nearly every combination of peripherals available from the MSP430 family. The integrated wireless evaluation module header and the large amounts of RAM on the MSP430FG4618 makes it an ideal platform for wireless applications. The wide range of integrated peripherals and hardware connectivity allows for nearly infinite development possibilities and makes it the ideal learning platform the MSP430 MCU architecture. A flash emulation Tool, like the MSP-FET430FUIF, is required to program and debug the MSP430 devices on the experimenter board.
