- Наличие: Под заказ 3-4 недели

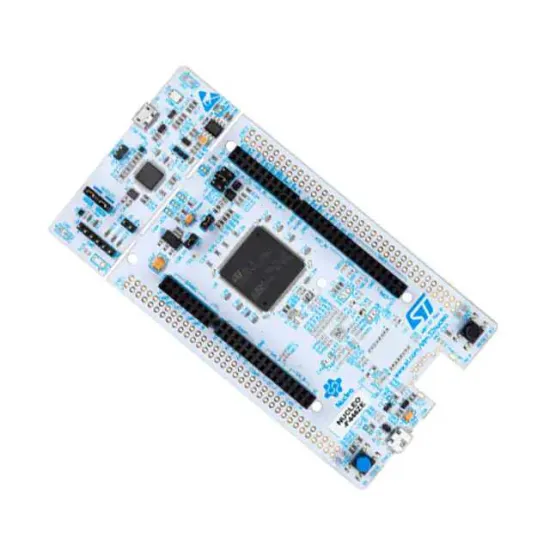

Макетная плата, микроконтроллер STM32F446ZE, поддержка Arduino, подключение ST Zio и Morpho.
The NUCLEO-F446ZE is a STM32 Nucleo-144 Development Board with STM32F446ZE microcontroller provides a flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The ST Zio connector, which is an extension of Arduino™ Uno V3, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields. The board does not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as a direct access to the ARM®mbed™online resources.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F446xx |
| Номер Ядра Чипа | STM32F446ZE |
| Особенности | Микроконтроллер 180МГц, ST-LINK/V2-1 отладчик/программатор, расширитель Uno, поддержка IAR/Keil/GCC IDE, USB/внешнее питание |
| Подархитектура Ядра | Cortex-M4 |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Макетная плата STM32F446ZE |
