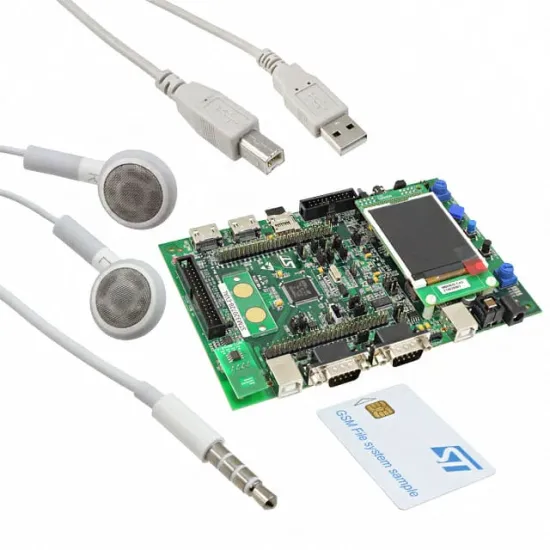

STM32072B-EVAL

Оценочная плата, микроконтроллер STM32F072VB, Cortex-M0, 240x320 TFT цветной ЖКД, 2ГБ SPI MicroSD.

The STM32072B-EVAL is an Evaluation Board designed as a complete demonstration and development platform for ARM cortex-M0 core-based STM32F072VBT6 microcontroller. It features two I?Cs, two SPIs, four USARTs, one CAN, 12-bit ADC, 12-bit DAC, two GP comparators, internal 16kB SRAM and 128kB flash, USB FS, Touch sensing, CEC, SWD debugging support. The full range of hardware features on the board is designed for the evaluation of all the peripherals and the development of user-specific applications. Extension headers are used to easily connect a daughter board or a wrapping board for user-specific applications. The ST-LINK/V2 is integrated on the board as embedded in-circuit debugger and programmer for the STM32 MCU.
