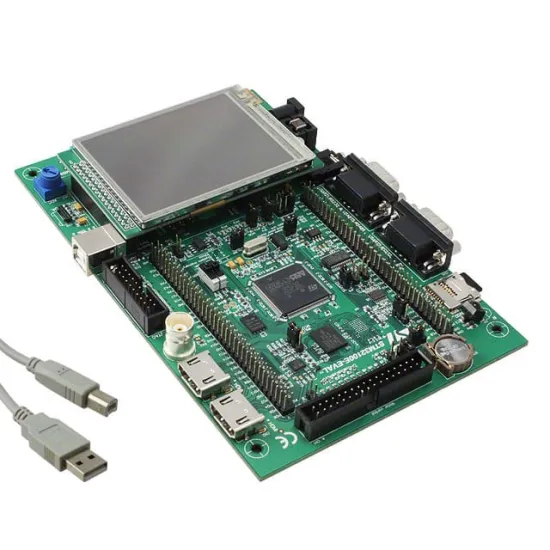

STM32100B-EVAL
- Наличие: Под заказ 3-4 недели
40 828 ₽
F100, JTAG, I2C, EVALUATION BOARD.
The STM32100B-EVAL evaluation board is designed as a complete development environment for STMicroelectronics ARM Cortex-M3 core based STM32F100VBT6 128Kbyte microcontroller. With a complete range of hardware evaluation features, the STM32100B-EVAL board is designed to help developers, evaluate all device peripherals (such as HDMI CEC, motor control, LCD, MicroSD Card, serial Flash, speaker, IrDA and USART) and develop their own applications. Extension connectors make it possible to easily connect a daughterboard or wrapping board for a specific application. An ST-LINK is integrated on the board as an embedded in-circuit debugger and programmer for the STM32F100VBT6 MCU.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F1xx |
| Номер Ядра Чипа | STM32 |
| Особенности | IrDA Transceiver, JTAG and SWD Debug Support |
| Особенности Комплекта | STM32F100VB Processor, JTAG Interface Connector, 1GB SD/MMC Card Connector |
| Подархитектура Ядра | Cortex-M3 |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Board |
