- Наличие: Под заказ 3-4 недели
Оценочная плата, STM32, J-TAG, I2C, I2S, I2C совместимый последовательный интерфейс, USB OTG FS.

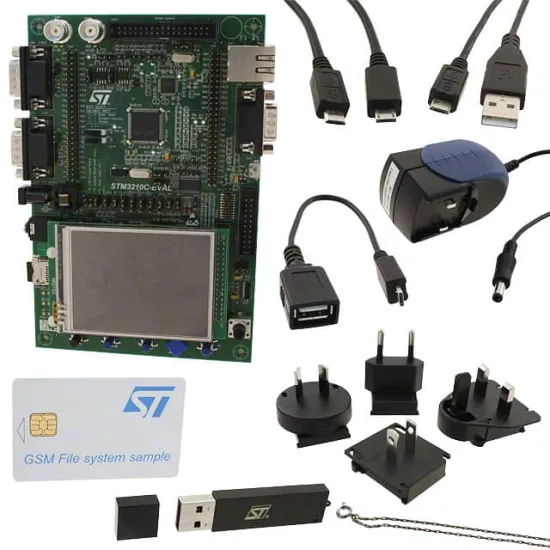

STM32F107VCT evaluation board is a complete development platform for STM32F107VCT microcontroller. It is a ARM Cortex-M3 core based STM32F107VCT microcontroller with full speed USB-OTG, Ethernet MAC, two channels of CAN2.0A/B compliant interface, 2 channels I2S, 2 channels I2C, 5 channels USART with smartcard support, 3 channels SPI, internal 64KB SRAM and 256KB Flash, JTAG and SWD debugging support. The full range of hardware features on the board help user evaluate all peripherals (USBOTG FS, Ethernet, motor control, CAN, microSD CardTM, smartcard, USART, audio DAC, MEMS, EEPROM… etc. ) and develop own applications. Extension headers make it easy to connect a daughterboard or wrapping board for your specific application.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F1xx |
| Номер Ядра Чипа | STM32 |
| Особенности | I2C Compatible Serial Interface, USB OTG Full Speed |
| Особенности Комплекта | Boot from User Flash, System Memory or SRAM, I2S Audio DAC, Stereo Audio Jack, IrDA Transceiver |
| Подархитектура Ядра | Cortex-M3 |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Board |
