- Наличие: Под заказ 3-4 недели
Стартовый комплект, ARM, STM32F207IG, µVision4 IDE/отладчик для отладки и программирования.

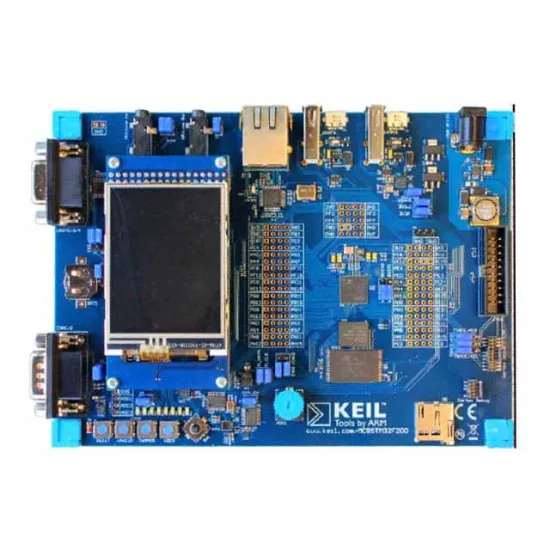

STM3220G-SK/KEI Keil starter kit is a complete, cost effective solution for starting application development and evaluating the STM32F2 series ARM Cortex-M3 processor based microcontrollers. The STM3220G-SK/KEI starter kit provides all the hardware and software need to start developing applications for the STM32 ARM core based families of microcontrollers. It comes complete with a full featured evaluation board (including Ethernet, USB HS, VGA camera, external memories, CAN, USARTs, Audio, and QVGA Touch screen LCD). The ULINK-ME connects user PC's USB port to target system (via JTAG or SWD) and allows to program and debug embedded programs on the target hardware.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F20x |
| Номер Ядра Чипа | STM32F207IG |
| Особенности | µVision4 IDE/Debugger for Application Programming & Debugging, ARM C/C++ Compiler, 120MHz MCU |
| Подархитектура Ядра | Cortex-M3 |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Starter Kit STM32F207IG |
