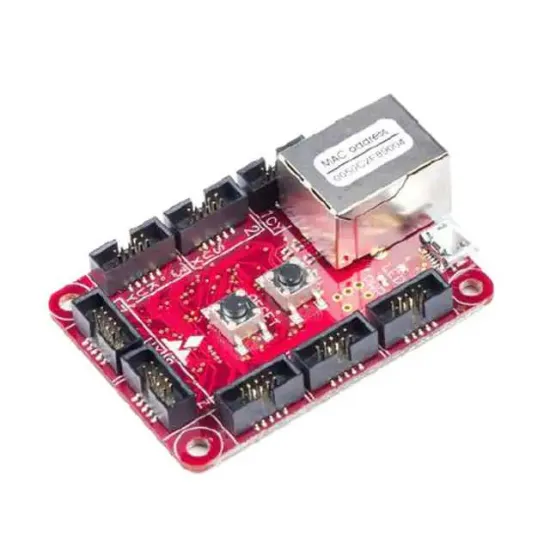

STM3240G-ETH/NMF
- Наличие: Под заказ 3-4 недели
0 ₽
Оценочная плата, STM32F407VG, встроенный стек lWIP HTTP, TCP, UDP, DHCP, ICMP.
The STM3240G-ETH/NMF is a complete, cost effective solution to start an application development with the Microsoft . NET micro framework environment for an STM32F4 ARM Cortex-M4 core based microcontroller. The STM3240G-ETH/NMF is for Ethernet variants. It allows developing, testing and deploying embedded software in C#, using Microsoft Visual Studio tools, all necessary hardware being included. We need to install Microsoft Visual Studio 2010, Microsoft Visual C# 2010 Express and the . NET Micro Frame software development kit and associated packages.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F4xx |
| Номер Ядра Чипа | STM32F407VG |
| Особенности | Ethernet Connector & Embedded lwIP Stack HTTP, TCP, UDP, DHCP, ICMP, Integrated Micro USB Connector |
| Подархитектура Ядра | Cortex-M4 |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Eval Board STM32F407VG |
