STM32429I-EVAL1
- Наличие: Под заказ 3-4 недели
76 196 ₽
Оценочная плата, STM32F42X, 4.3" TFT ЖКД, 2ГБ MicroSD, CAN/I2C/RS232/USB, модуль камеры.

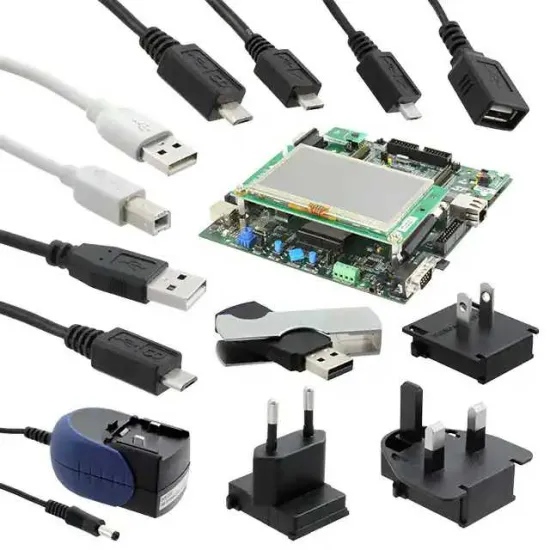

STM32429I-EVAL1 evaluation board is a complete demonstration and development platform for the ARM Cortex-M4 core based STM32F429 line microcontrollers. The integrated ST-LINK/V2 provides an embedded in circuit debugger and programmer for the STM32 MCU. Extension headers make it possible to easily connect a daughterboard for user specific application. The STM32429I-EVAL evaluation board includes everything required for beginners and experienced users to develop applications quickly.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F4xx |
| Номер Ядра Чипа | STM32F429NIH6 |
| Особенности | 4.3" TFT LCD, 2GB MicroSD, CAN/I2C/RS232/USB, Camera Module, IEEE-802.3 Ethernet, IrDA Tx/Rx |
| Подархитектура Ядра | Cortex-M4 |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Dev Board STM32F429NIH6 |
