TMDXDOCK28027
- Наличие: Под заказ 3-4 недели
0 ₽
PICCOLO, TMX320F28027, EXP KIT.

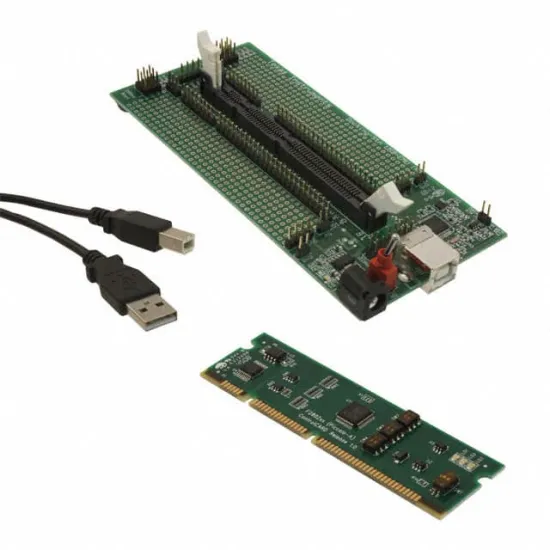

The TMDXDOCK28027 is a Piccolo experimenter kit . This experiment kit is used to evaluate quick, easy and a low cost TMS320F28x family of devices. It consists of a docking station and a F28027 control CARD. The docking station is a small mother board that accepts any of the plug-in controlCARDs and gives the user access to all the F28x device's GPIO and ADC signals. Additionally, it also provides two prototyping areas (one on each side of the DIMM100 connector) with an array of 0.1" spaced plated through holes for wire wrapping and soldering.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jun-2015) |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | Piccolo - TMS320F280xx |
| Номер Ядра Чипа | TMS320F28 |
| Особенности | Docking Station with on Board USB JTAG Emulation, Code Composer Studio |
| Особенности Комплекта | TMX320F28027 MCU Based Control CARD, Docking Station w/ USB JTAG Emulation, USB Connection |
| Подархитектура Ядра | C2000 |
| Производитель Чипа | Texas Instruments |
| Содержимое Комплекта | Board |
