TMDXEVM1810
- Наличие: Под заказ 3-4 недели
217 716 ₽
Оценочный модуль, для платы процессора ARM9, плата приемопередатчика Profibus ISO1176T.

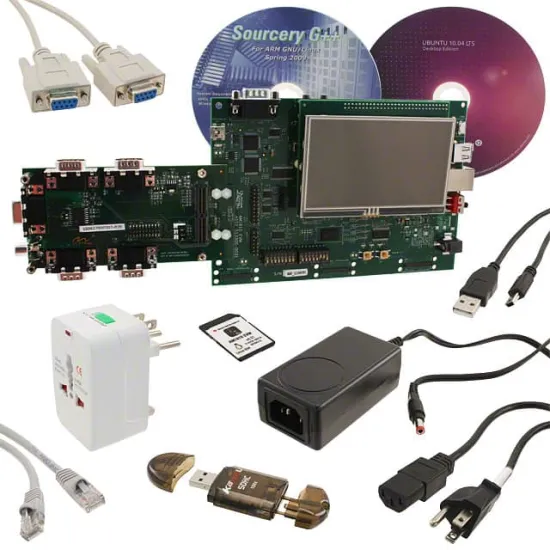

TMDXEVM1810 is an evaluation board for AM1810 fully featured application development kit for evaluating the functionality of Texas Instruments' highly integrated, energy efficient AM1810 Sitara ARM Processors. The AM1810 processor is ideal for applications in the industrial, portable medical, communications, and consumer markets. Specifically, the AM1810 processor integrates the PROFIBUS industrial communication interface on the chip and eliminates need for external PROFIBUS device. The AM1810 evaluation module provides a single development environment that allows customers to evaluate and exercise all the peripherals including the PROFIBUS interface.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jun-2015) |
| Архитектура Ядра | ARM |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | Sitara - AM18xx |
| Номер Ядра Чипа | AM1x |
| Особенности | ARM9 Processor Board, PROFIBUS ISO1176T Transceiver Board, Ethernet Cable, Null-modem Serial Cable |
| Подархитектура Ядра | ARM9 |
| Производитель Чипа | Texas Instruments |
| Содержимое Комплекта | PROFIBUS Transceiver Board, Touch-screen LCD, Software & Tools, Expansion Card, Cables |
