Оценочный модуль, DSP, быстрая оценка C55XX, цветной OLED дисплей.

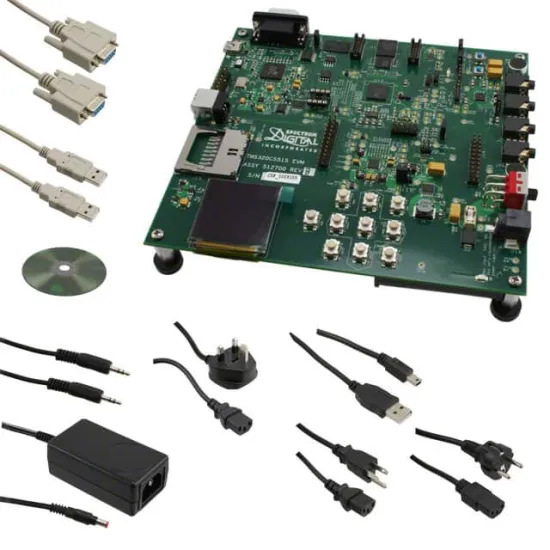

The TMDXEVM5515 is an evaluation module for TMS320C5515 fixed point digital signal processor. It is an evaluation platform designed to speed the evaluation process of four latest lowest power C55x DSPs, TMS320C5515, TMS320C5514, TMS320C5505A and TMS320C5504A. The TMS320C5515 is a lowest power 16bit processors helping conserve energy at exceptional levels and enabling longer battery life. With 240MIPS performance, up to 320KB onchip memory, higher integration (including a hardware accelerator for FFT computation). This evaluation tool offers more memory options (Flash and mSDRAM) compared to TMDXEVM5505 making it easy for customers. Both experienced and novice designers can get started immediately with innovative product designs by utilizing the EVM's full featured code composer studio integrated development environment (IDE) and eXpressDSP software which includes the DSP/BIOS kernel.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jun-2015) |
| Архитектура Ядра | C5000 |
| Количество Бит | 32бита |
| Линия Продукции | - |
| Название Семейства Чипа | TMS320VC5xxx |
| Номер Ядра Чипа | TMS320VC |
| Особенности | Onboard Embedded JTAG Emulation, OLED Colour LCD Display |
| Подархитектура Ядра | TMS320C55x |
| Производитель Чипа | Texas Instruments |
| Содержимое Комплекта | Eval Board, Code Composer Studio, USB Cable, Power Supply, AC Power Cord |
