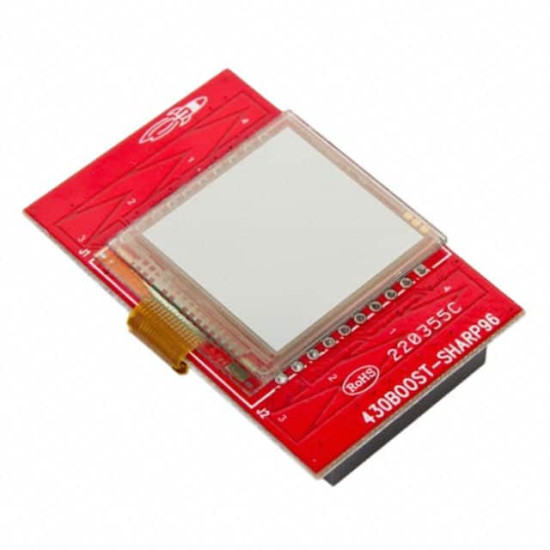

430BOOST-SHARP96
- Наличие: Под заказ 3-4 недели
0 ₽
Плата памяти ЖКД Booster Pack, экран 1.3", память ЖКД 96 x 96 пикселей, управление через SPI.
The 430BOOST-SHARP96 is a Sharp memory LCD BoosterPack plug in module based on LS013B4DN04 display from Sharp Electronics. This plug in module used along with MSP430 LaunchPad evaluation Kit for displaying the sensor readings, time & other information. The LS013B4DN04 features 1.3inch display screen with resolution of 96 x 96 pixels. This display is capable of delivering smooth moving graphics with 50% reflectance and low power use of 10µW. Two capacitive touch sliders are featured to enable user input. Each slider consists of three elements, one of the element is linked to both the top and bottom of the slider.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jun-2015) |
| Для Использования с | TI MSP-EXP430FR5969 LaunchPad Evaluation Kit |
| Линия Продукции | - |
| Название Семейства Чипа | MSP430FR59xx |
| Номер Ядра Чипа | MSP430FR5969 |
| Особенности | 1.3" Screen of 96 x 96 Pixels Memory LCD, SPI Control, 2 Capacitive Touch Sliders, Software Enabled |
| Подархитектура Ядра | MSP430 |
| Производитель Чипа | Texas Instruments |
| Содержимое Комплекта | Memory LCD BoosterPack LS013B4DN04, User Manual |
