TMDXCNCD28075

controlCARD, ЦПУ 120МГц с плавающей точкой, изолированный USB JTAG и 180-выводный HSEC интерфейс.

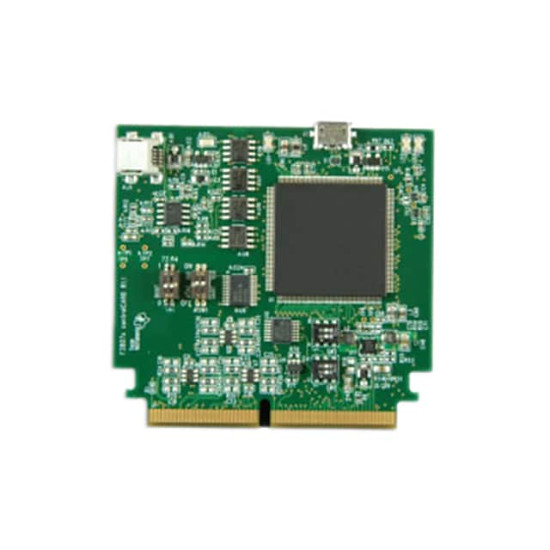

The TMDXCNCD28075 is an Experimenter's Kit features the 32-bit floating point Piccolo F28075 MCU. This MCU is well suited for digital control applications such as frequency inverters, telecom rectifiers, server power, renewable energy, automotive power and more. The Piccolo F2807x MCUs provide an advanced integrated architecture for control applications with a blazing C28x CPU, new hardware accelerators like the trigonometric math unit (TMU) and viterbi complex unit (VCU) a parallel co-processor with the control law accelerator (CLA) and many distinguished analogue peripherals. The kit is ideal for initial device exploration, software development and debug. The kit includes a TMDXCNCD28075 controlCARD with the F28075 MCU, a docking station with onboard USB JTAG emulation enabling access to all controlCARD signals, a breadboard area and RS-232 and JRAG connectors. The controlCARD is a complete board level module that utilizes the HSEC form factor.
