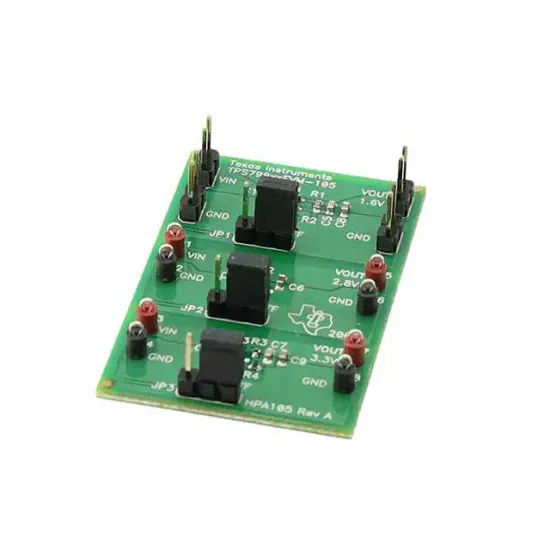

TPS799XXEVM-105

EVALUATION BOARD, POWER MANAGEMENT.

The TPS799XXEVM-105 is an evaluation module helps the designers to evaluate the operation and performance of the TPS799xx family of linear regulators. These regulators are low quiescent current, high PSRR, ultra low noise, low dropout linear regulators. This evaluation module contains three independent linear regulator DC/DC converters TPS79901YZU (adjustable, WCSP), TPS79928YZU (2.8V output, WCSP) and TPS79901DDC (adjustable, SOT23). If desired, converters 1 and 3 on this evaluation module can be easily modified to supply higher or lower output voltages. The converter can be adjusted to provide an output voltage between 1.217V and 6.34V. Output voltages other than the default values may be evaluated by adjusting the appropriate feedback resistors. Also, other fixed output voltage versions of the devices can be easily evaluated using This evaluation module.
