DRV8702-Q1EVM

Оценочный модуль, DRV8702-Q1 драйвер затвора автомобильного щеточного DC двигателя, 5.9В - 45В.

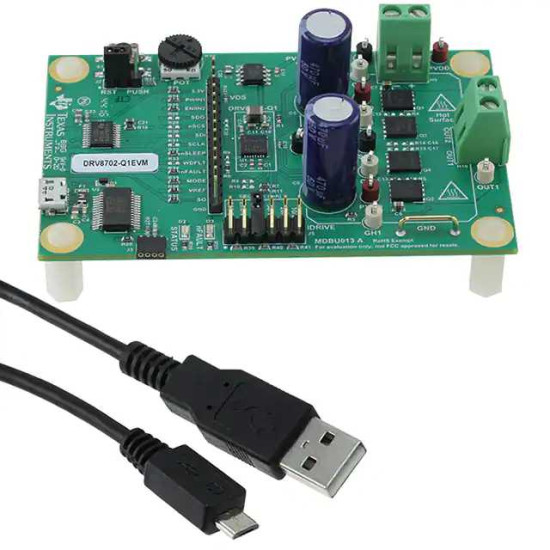

The DRV8702-Q1EVM from Texas Instruments is a DRV8702-Q1 automotive brushed DC motor gate driver evaluation module. The DRV8702-Q1EVM (evaluation module) serves as an evaluation kit to demonstrate TI's DRV8702-Q1 H-bridge gate driver. An MSP430G2553 is used to control the duty cycle and direction of the motor while also monitoring the motor current reported from the DRV8702-Q1. The power stage is created using the DRV8702-Q1 automotive H-bridge gate driver and CSD18540Q5B N-Channel NexFET power MOSFETs. The EVM is a high-performance, protected and cost-effective platform that reduces development overhead for a quicker time to market. A user friendly application is provided to quickly get the EVM operating with minimal external equipment.

• Operating voltage range from 5.9V to 45V
• 15A continuous / 20A peak H-bridge output current
• Driver a single bidirectional brushed DC motor or two unidirectional brushed DC motors
• Compact 3.5" x 2.2" form factor
• User friendly GUI via MSP430 and USB interface
