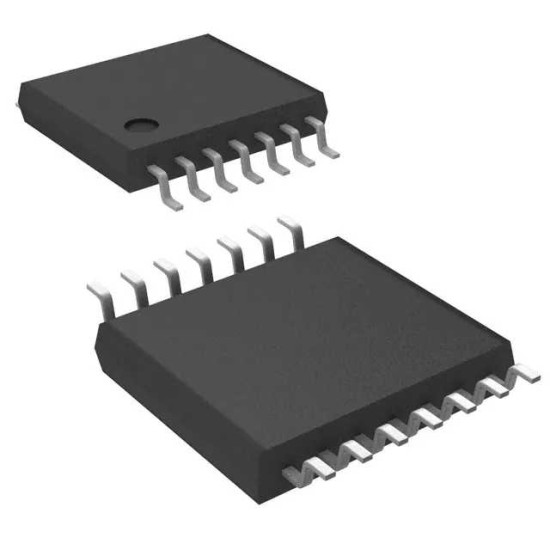

MC74VHC14DTG

Инвертор, семейство VHC, триггер Шмитта, 1 вход, 8мА, 2В до 5.5В, TSSOP-14.

The MC74VHC14DTG is an advanced high speed Hex Schmitt Inverter fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent bipolar schottky TTL while maintaining CMOS low power dissipation. Pin configuration and function are the same as the MC74VHC04 but the inputs have hysteresis and, with its Schmitt-trigger function, the device can be used as a line receiver which will receive slow input signals. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
