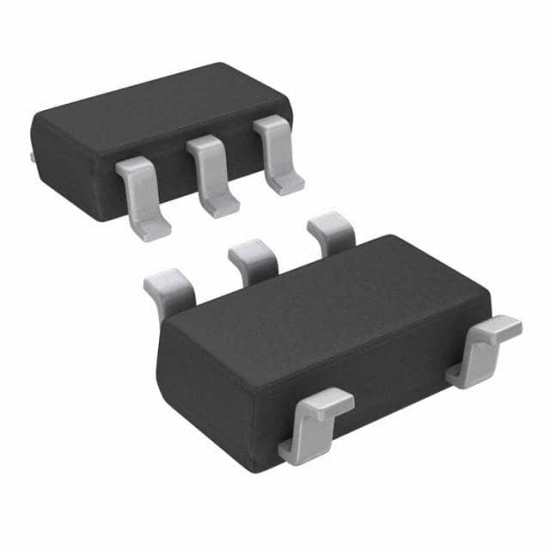

NC7S00M5X

NAND Gate, NC7S Family, 2 Inputs, 2V to 6V Supply, SOT-23-5 Новинка.

The NC7S00M5X is a single 2-input high performance CMOS NAND Gate. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails. Three stages of gain between inputs and output assures high noise immunity and reduced sensitivity to input edge rate.

• 3.5ns Propagation delay (tPD)
• ICC <1µA Low quiescent power
• 2mA IOL, -2mA IOH Balanced output drive
• Balanced propagation delays
• Specified for 3V operation
