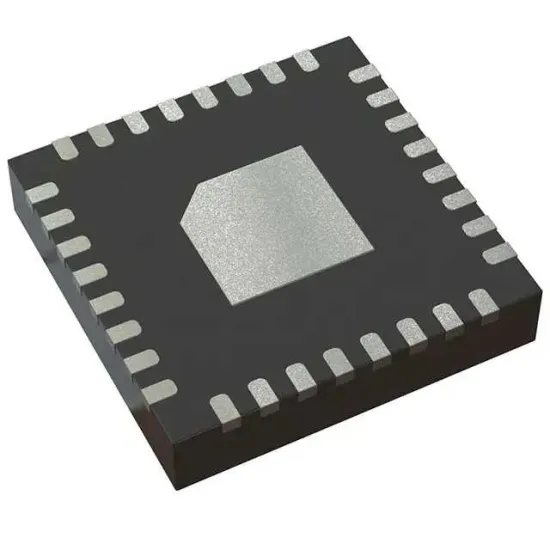

MSP430G2433IRHB32T

Микроконтроллер 16 бит, смешанных сигналов, MSP430G2xx, 16 МГц, 8 КБ, 512 Байт, 32 вывод(-ов), QFN.

The MSP430G2433IRHB32T is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with two 16-bit timers, 10-bit A/D converter, built-in communication capability using the USCI and 24 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.
