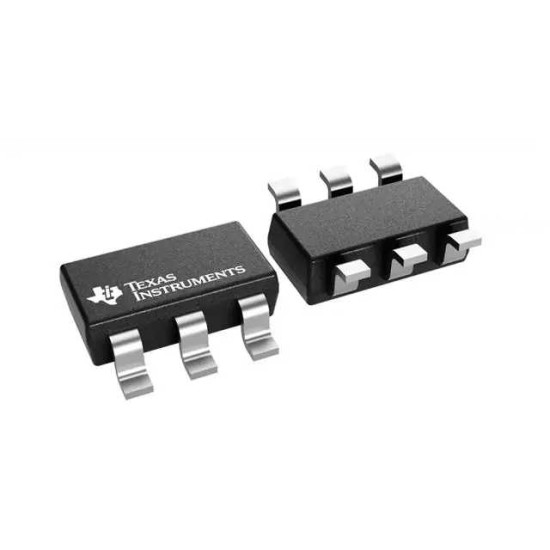

LM2736YMK

Импульсный понижающий DC-DC стабилизатор, регулируемый, 3В-18В (Vin), 1.25В-16В, 750мА, TSOT-23-6.

The LM2736YMK is a Step-down DC-DC Regulator provides all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area. With a minimum of external components and online design support through WEBENCH, the LM2736 is easy to use. The ability to drive 750mA loads with an internal 350mR NMOS switch using state-of-the-art 0.5µm BiCMOS technology results in the best power density available. The world class control circuitry allows for on-times as low as 13ns, thus supporting exceptionally high frequency conversion over the entire 3V to 18V input operating range down to the minimum output voltage of 1.25V. It utilizes current-mode control and internal compensation to provide high-performance regulation over a wide range of operating conditions. Additional features include internal soft-start circuitry to reduce inrush current, pulse-by-pulse current limit, thermal shutdown and output over-voltage protection.
