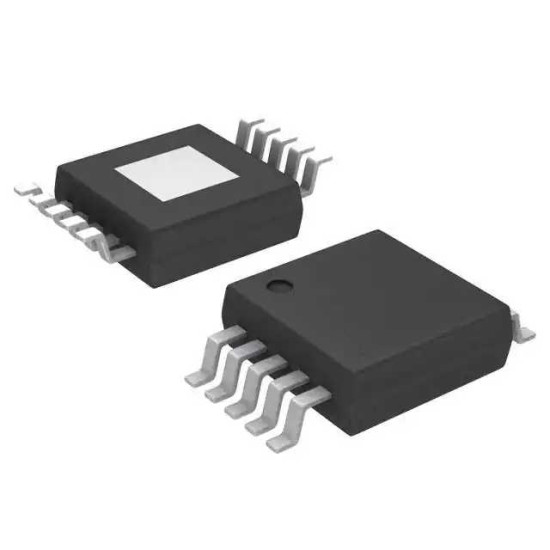

TPS54060DGQ

Импульсный понижающий DC-DC стабилизатор, регулируемый, 3.5В-60В (Vin), 800мВ-58В, 500мА, MSOP-10.

The TPS54060DGQ is a 60V 0.5A Step-down Converter with an integrated high side MOSFET and Eco-mode™. Current-mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated input supply current to 116µA. Using the enable pin, shutdown supply current is reduced to 1.3µA when the enable pin is low. Under-voltage lockout is internally set at 2.5V, but can be increased using the enable pin. The output voltage start-up ramp is controlled by the slow-start pin that can also be configured for sequencing/tracking. An open-drain power-good signal indicates the output is within 94 to 107% of its nominal voltage. A wide switching-frequency range allows efficiency and external component size optimization. Frequency foldback and thermal shutdown protect the part during an overload condition.
