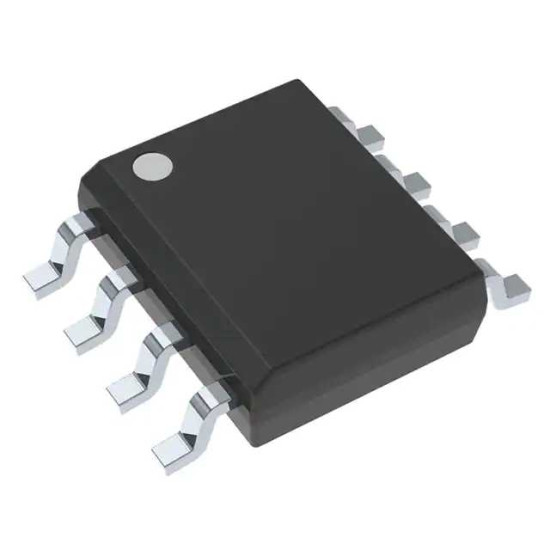

OPA2301AID

Операционный усилитель, двойной, 150 МГц, 2 Усилителя, 80 В/мкс, 2.7В до 5.5В, SOIC, 8 вывод(-ов).

The OPA2301AID is a low-noise high-speed CMOS voltage-feedback Operational Amplifier designed for 16-bit resolution systems. The OPA301 series is unity-gain stable and feature excellent settling and harmonic distortion specifications. Low power applications benefit from low quiescent current. The OPA2300 feature a digital shutdown (enable) function to provide additional power savings during idle periods. Optimized for single-supply operation, the OPA301 series offer superior output swing and excellent common-mode range. The OPA301 series op amp has 150MHz of unity-gain bandwidth, low 3nV/?Hz voltage noise and 0.1% settling within 30ns. Single-supply operation from 2.7 to 5.5V and an available shutdown function that reduces supply current to 5µA are useful for portable low-power applications.
