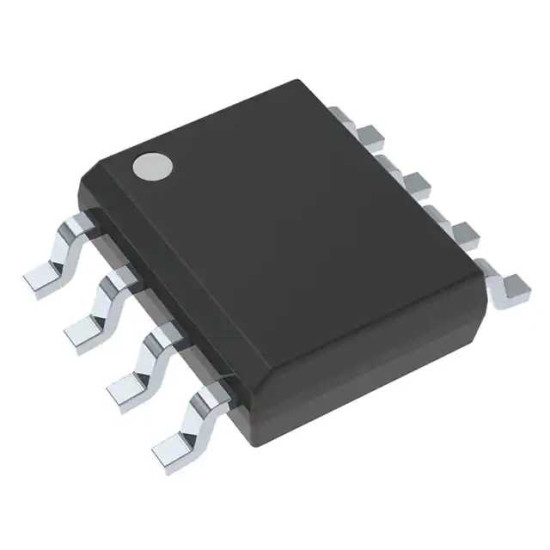

OPA2340UA

Операционный усилитель, двойной, 5.5 МГц, 2 Усилителя, 6 В/мкс, 2.7В до 5В, SOIC, 8 вывод(-ов).

The OPA2340UA is a rail-to-rail CMOS Operational Amplifier, optimized for low-voltage, single-supply operation. Rail-to-rail input/output and high-speed operation make them ideal for driving sampling analogue-to-digital (A/D) converters. They are also well-suited for general purpose and audio applications as well as providing I/V conversion at the output of digital-to-analogue (D/A) converters. Single, dual and quad versions have identical specifications for design flexibility. It operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 500mV below ground and 500mV above the positive supply. Output voltage swing is to within 1mV of the supply rails with a 100k load. They offer excellent dynamic response (BW = 5.5MHz, SR = 6V/µs), yet quiescent current is only 750µA. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
