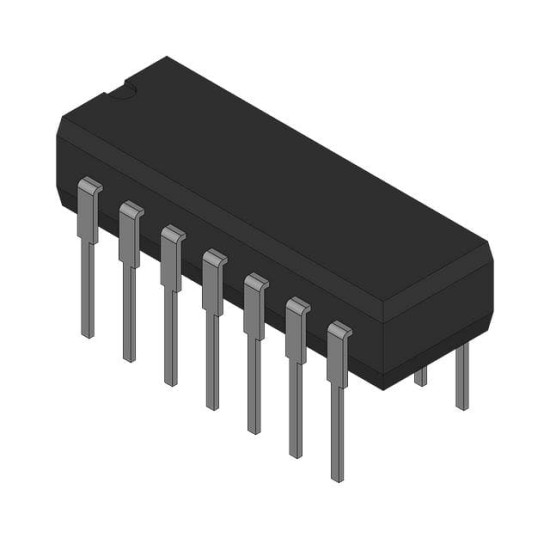

OPA4344PA

Операционный усилитель, 1 МГц, 4 Усилителя, 0.8 В/мкс, 2.5В до 5.5В, DIP, 14 вывод(-ов).

The OPA4344PA is a quad low power CMOS Operational Amplifier designed for precision, low-power and miniature applications. The OPA344 is unity gain stable and has a gain-bandwidth product of 3MHz. The OPA344 is optimized to operate on a single supply from 2.5 and up to 5.5V with an input common-mode voltage range that extends 300mV beyond the supplies. Quiescent current is only 250µA (maximum). Rail-to-rail input and output make them ideal for driving sampling analog-to-digital converters. It is also well suited for general purpose applications and providing I/V conversion at the output of D/A converters. Quad version has identical specs for design flexibility.
