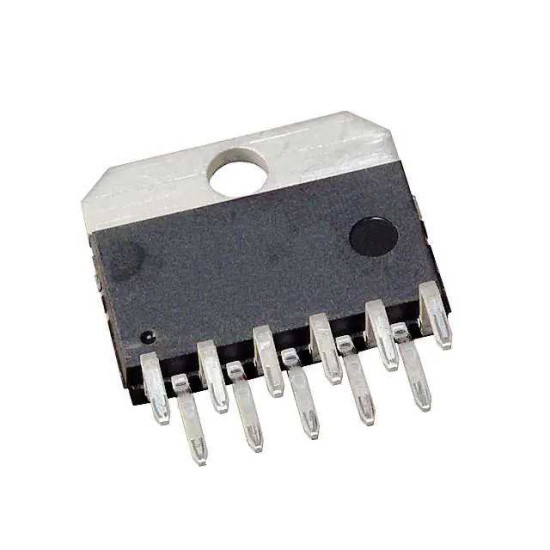

OPA549T

Операционный усилитель, одиночный, 900 кГц, 1 Усилитель, 9 В/мкс, 8В до 60В, TO-220, 11 вывод(-ов).

The OPA549T is a high-voltage/high-current Operational Amplifier, ideal for driving a wide variety of loads. This laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current. The OPA549T operates from either single or dual supplies for design flexibility. The input common-mode range extends below the negative supply. The OPA549 is internally protected against over-temperature conditions and current overloads. In addition, the OPA549 provides an accurate, user-selected current limit. Unlike other designs which use a power resistor in series with the output current path, the OPA549T senses the load indirectly. This allows the current limit to be adjusted from 0 to 10A with a resistor/potentiometer or controlled digitally with a voltage-out or current-out digital-to-analogue Converter (DAC). The enable/status (E/S) pin provides two functions.
