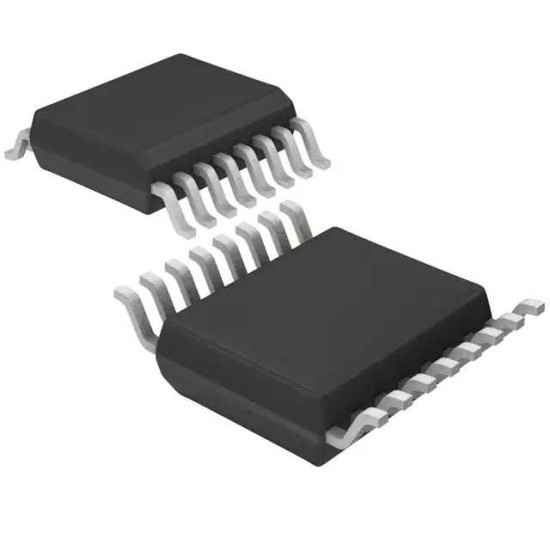

NLAST4051DTR2G

ANALOGUE MUX/DEMUX, 8:1, TSSOP-16.

The NLAST4051DTR2G is an Analog Multiplexer/Demultiplexer, fabricated in sub-micron silicon gate CMOS technology for lower RDS(on) resistance and improved linearity with low current. This device may be operated either with a single supply or dual supply up to ±3V to pass a 6Vpp signal without coupling capacitors. When operating in single supply mode, it is only necessary to tie VEE, pin 7 to ground. For dual supply operation, VEE is tied to a negative voltage, not to exceed maximum ratings. Translation is provided in the device, the Address and Inhibit are standard TTL level compatible.
