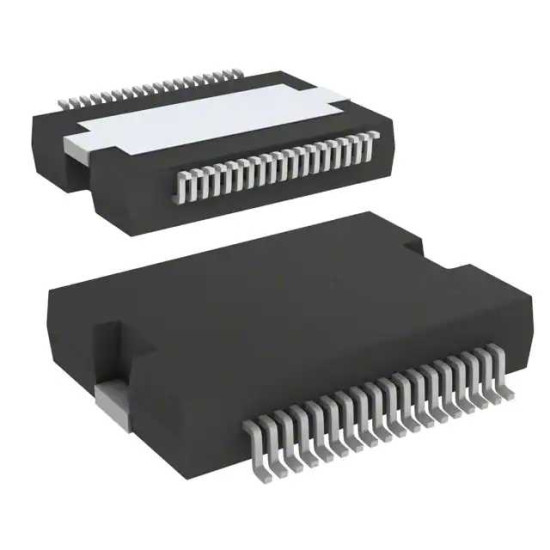

VN808CM-32-E

OCTAL CHANNEL HIGH SIDE DRIVR, 36POWERSO.

The VN808CM-32-E is an octal channel High-side Driver designed in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. It can be driven by using a 3.3V logic supply. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turn-OFF and on again automatically so to maintain the junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned off and on if the case temperature decreases down to TCR. Non-overloaded channels continue to operate normally. The device automatically turn-OFF in case of ground pin disconnection. This device is especially suitable for industrial applications conform to IEC 61131.
